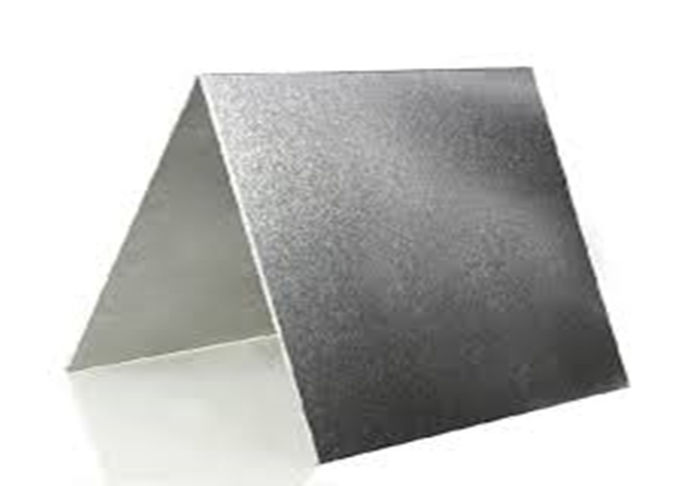

ASTM A240 904L Plate

    Type: Plate, Sheet, Strip, Coil
    Length: 0-12m
    Width: 0-2500mm
    Thickness: 0.3-1200mm
    Process: Hot/Cold Rolled
    Surface: 1,2D,2B BA,3,4,6,7
+86 18865211873
ganmaimai@qq.com

Best Price ASTM A240 ASME SA240 904L Steel Plate Sheet Strip, Stainless Steel 904L Sheets, SS 904L Plates, Steel 904L Coils, Grade TP904L Stainless Steel Shim Sheets Exporters, SUS 904L Plate, AISI Steel 904L Perforated Sheet Suppliers, ASTM B625 SS 904L BA Finish Cold Rolled Coil Manufactures, ASME SB625 SS UNS N08904 Plain Sheets, 904L Austenitic Stainless Steel Plates Stockholders.

The ASTM/ASME SA240 Stainless Steel 904L (UNS NO8904) Sheets and Plates have a range of properties as well as characteristics. These ASTM A240 ASME SA240 904L Steel Plates get these properties as well features from the elements present in their chemical composition. These ASTM A240 904L Plates have the property of being resistant to corrosion.



These ASTM A240 904L Steel Plates have dimensional accuracy. These Stainless Steel 904L Sheets can sustain high pressure & temperature load. Grade TP904L Stainless Steel Shim Sheets also have a rustproof finish.



These ASTM A240 904L Plates are manufactured from high-quality raw materials, and therefore the SUS 904L Plates that are manufactured are also of premium quality. These AISI Steel 904L Sheets also have to undergo a series of tests in order to test and improve the quality of the products so that they perform well.


Hot Rolled Steel Sheet:

Hot rolled steel sheet and plate provides a rougher surface than cold rolled steel and plate.

When galvanized it is also regularly used in applications where corrosion resistance is a necessity.

High strength and highly formable HR steel sheet and plate is also easy to drill, form and weld.

Hot rolled steel sheet is available as standard hot rolled or as hot rolled P & O.

Common hot rolled steel specifications include HR A36, HR A1011, and HR A1018

Steel Plate



The difference between steel sheet and steel plate lies with their gauge or thickness. Plate metal thickness includes steel sheet metal that is 5mm or thicker. Steel plate is often used for construction or structural purposes due to its low maintenance versatility. Benefits of steel plate include:

Corrosion resistant

Durability

Strength-to-weight ratio



A240 904L Chemical Composition, max%

C

Mn

P

S

Si

Cr

0.02

2.00

0.045

0.035

1.00

19.0-23.0

Ni

Mo

N

Cu

Others

23.0-28.0

4.0-5.0

0.10

1.0-2.0




A240 904L Mechanical Properties

Grade

Tensile Str., min, MPa

0.2% Yield Str., min, MPa

E.L in 50mm, min %

max HRB



A240 TP 904L

490

220

35

90




SS 904L Sheets & Plates Equivalent Grades

STANDARD

WERKSTOFF NR.

UNS

JIS

KS

BS

AFNOR

EN

SS 904L

1.4539

N08904

SUS 904L

STS 317J5L

904S13

Z2 NCDU 25-20

X1NiCrMoCu25-20-5



ASTM A240 904L Plate
