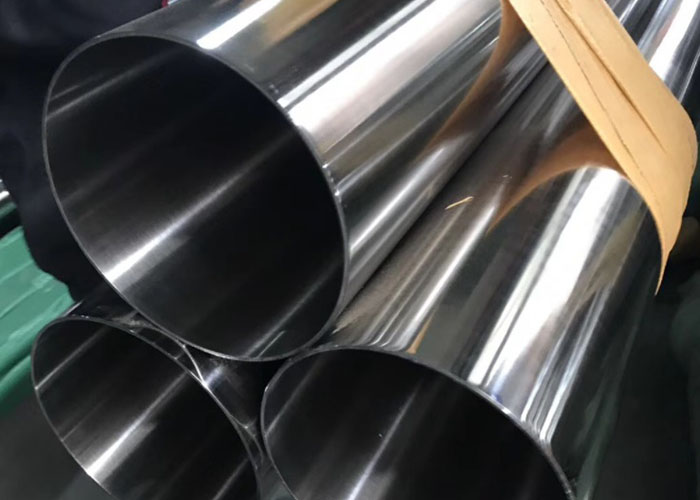

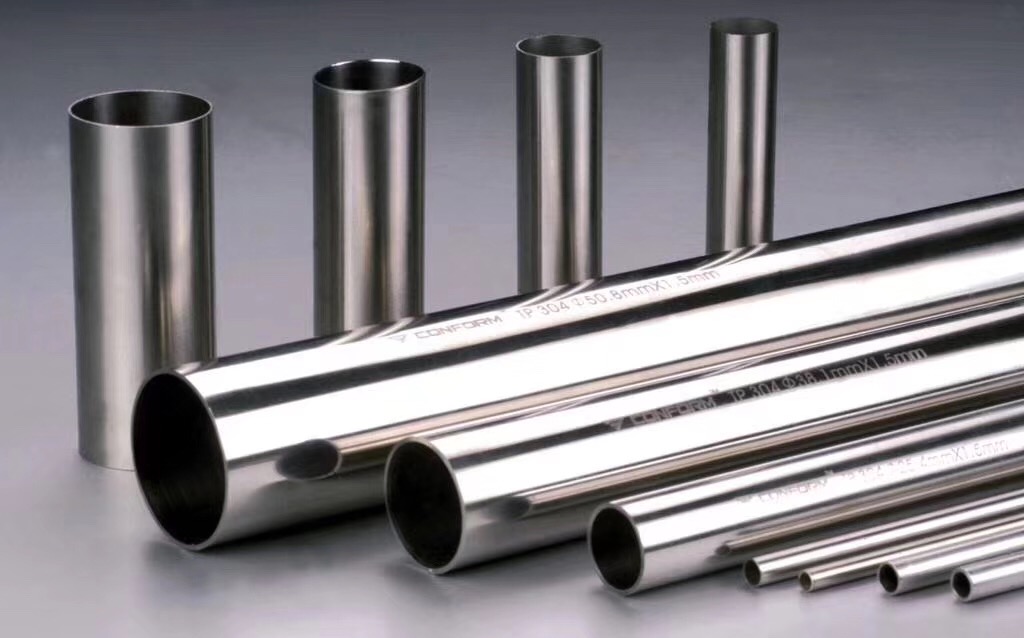

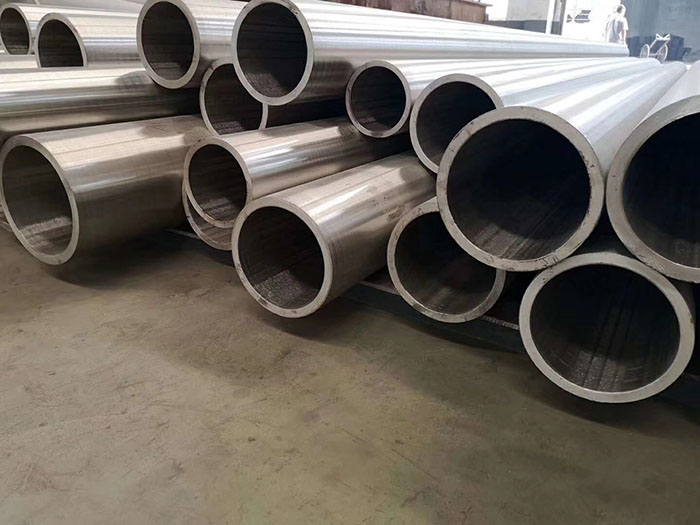

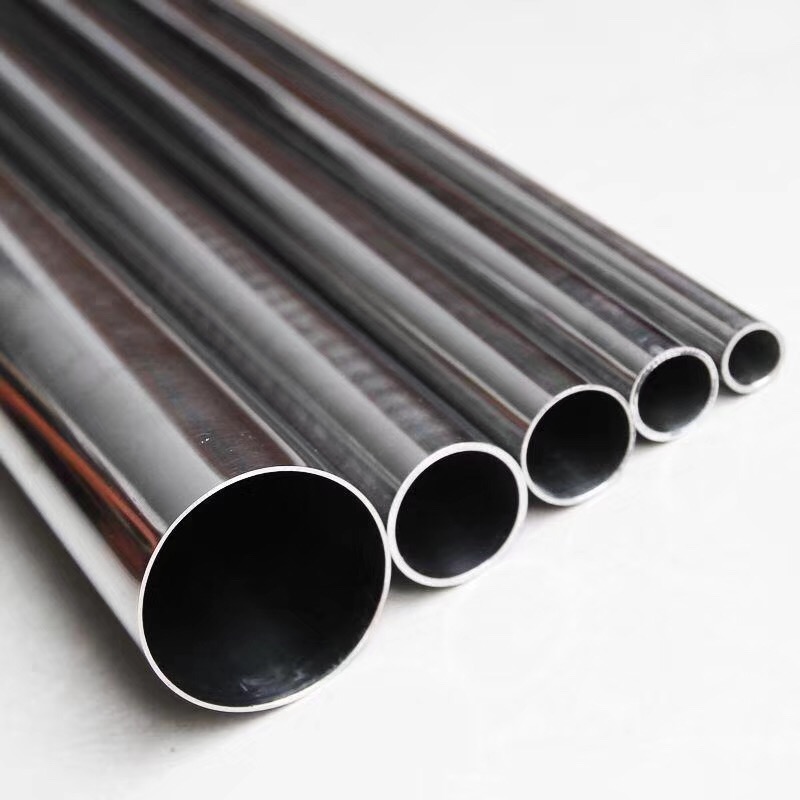

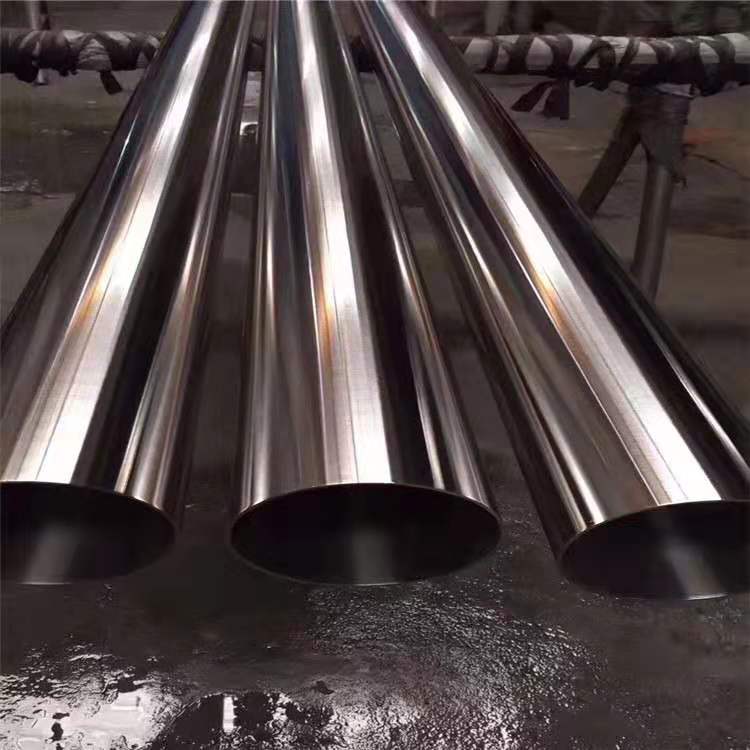

ASTM A312 TP316L Steel Pipe Welded Two WN Flanges
-
Type: Seamless, Welded
OD: 1/2"-48"
Thickness: SCH5-SCHXXS
Length: 0-12M, Customized
Process: Hot/Cold Rolled,Hot work,Cold drawn
ASTM A312 TP316L Steel Pipe, ASME SA 312 316L Seamless Pipe, Inox 1.4404 ERW Pipe Manufacturer, ASTM A312 Tp316l Seamless Pipes, 316L Welded Pipe, UNS S31603 Welded Pipe, ASTM A312 Gr TP 316L Seamless Tube.
ASTM A312 TP316L Steel Pipe:
ASTM A312 TP316L Steel Pipe is a grade of tubular products. HT PIPE is a large supplier of all kinds of ASTM A312 Tp316l Pipe Dimensions. We manufacture pipes of different schedules under different diameters. There are ASTM A312 Tp316l Equivalent products in the market as well. But our ASME A312 Tp316l products are unique in that they could be used at subzero temperatures as well. Our Stainless Steel Pipe A312 Tp316l ranges from small to medium sizes. We can also produce custom ASME SA 312 316L Seamless Pipes as well.
These ASTM A312 TP316L Steel Pipes are highly resistance to chloride corrosion and therefore the 316l Stainless Steel Pipe resistant to pitting and crevice corrosion even under chloride rich environments. Our UNS S31603 Welded Pipes can be used in boats, marine applications, sea water purification systems and in waste water management applications as well. There are different schedules of the pipes to accommodate different diameters and wall thicknesses.
AISI 316L Pipe Chemical Composition
ASTM A312 | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
TP316L | min. | - | - | - | - | - | 16.0 | 2.0 | 10.0 | - |
max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 |
ASME SA 312 TP 316L Pipe Mechanical Properties
ASTM A312 | Tensile Stress (MPa) min | Yield Stress 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
TP316L | 515 | 205 | 40 | 95 | 217 |
