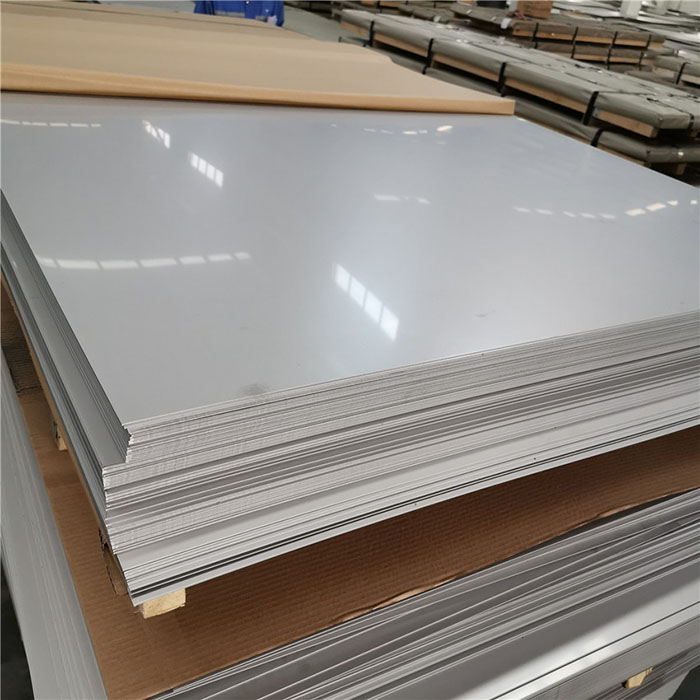

Special Alloy ASTM B424 UNS N08825 Alloy 825 Incoloy 825 2.4858 Plate Sheet Strip With USA SMC ATI GERMANY VDM Origin

    Type: Plate, Sheet, Strip, Coil
    Length: 0-12m
    Width: 0-2500mm
    Thickness: 0.3-1200mm
    Process: Hot/Cold Rolled
    Surface: 1,2D,2B BA,3,4,6,7
+86 18865211873
ganmaimai@qq.com

Special Alloy ASTM B424 UNS N08825 Alloy 825 Incoloy 825 2.4858 Plate Sheet Strip with USA SMC ATI GERMANY VDM Origin

The nickel content of Nickel Alloy 825 Plate is sufficient to withstand chloride ions and stress corrosion cracking. UNS N08825 Plate has excellent antioxidant and non-oxidative thermal acid efficiency. After fabrication and pitting, the titanium content of the alloy continues to undergo intergranular shock. Alloy 825 Sheet is proven to be very weldable by all conventional mechanics.



UNS N08825 Incoloy 825 Plate contains small amounts of titanium, copper and molybdenum. Meanwhile, Incoloy 825 Nickel Alloy Plate has good mechanical properties in the medium to high temperature range and is hot worked from 1600 to 2150º F. Additionally, forgings of Incoloy 825 sheet should be air cooled or faster. Nickel alloy 825 plate is used for oil and gas well piping and nuclear fuel reprocessing. For maximum corrosion resistance, hot worked parts of Nickel Alloy 825 Plate should be stabilized annealed prior to use.

Chemical composition of Incoloy Alloy 825 Plate Sheet Strip Coil

Nickel

38.0 – 46.0

Carbon

0.05 max

Chromium

19.5 – 23.5

Manganese

1.0 max

Molybdenum

2.5 – 3.5

Sulfur

0.03 max

Copper

1.5 – 3.0

Silicon

0.5 max

Titanium

0.6 – 1.2

Aluminium

0.2 max

Iron

22.0 min (~33%)





Tensile Properties of Incoloy Alloy 825


Tube

Annealed

440

770

35

Tube

Cold drawn

880

1000

15

Bar

Annealed

325

690

45

Plate

Annealed

340

660

45

Sheet

Annealed

420

760

39
