Nitronic 60 Steel Plate
-
Type: Plate, Sheet, Strip, Coil
Length: 0-12m
Width: 0-2500mm
Thickness: 0.3-1200mm
Process: Hot/Cold Rolled
Surface: 1,2D,2B BA,3,4,6,7
Nitronic 60 Steel Plate, Nitronic 60 Plates Manufacturer, Leading Manufacturer Of Nitronic Alloy 60 Plates Supplier, Nitronic 60 Plate, Nitronic Alloy 60 Cold Rolled Plate, ASTM A240 Nitronic 60 Hot Rolled Plate Stockholder, Nitronic 60 Plate, Nitronic 60 High Quality Plates Exporter.
Nitronic 60 Steel Plates are flat sheets made from high-performance austenitic stainless steel, known as Nitronic 60. Nitronic Alloy 60 Plates comprises chromium, nickel, manganese, and nitrogen, with smaller amounts of silicon and molybdenum. Nitronic Alloy 60 Cold Rolled Plates offer excellent mechanical properties, including high strength, good flexibility, and excellent wear resistance, making ASTM A240 Nitronic 60 Hot Rolled Plates suitable for use in demanding applications such as rock crushing, pumps, valves & chemical processing equipment.
ASTM A240 Nitronic 60 Alloy Plates also offer good corrosion resistance, including in high-temperature and high-stress environments, and are resistant to stress corrosion cracking and pitting. These Nitronic 60 Steel Plates are available in various sizes and thicknesses and can be cut, formed, and welded to suit specific applications. Nitronic 60 plates come in various shapes and sizes depending on their intended use. Commonly available varieties include sheet metal plates, rolled bars, extruded shapes, welded pipes, and forgings. The most common type is the Nitronic 60 High Quality Plate which can be cut to size to meet your specific needs. Several products of Nitronic Alloys Plates are available like Nitronic 50 Plates.
1. Nitronic 60 Steel Plate Specification
Specification | ASTM A240/ASME SA240 |
Standard | ASTM, ASME and API |
Thickness | 4.0mm-100mm |
Specialize | Plate, Shim Sheet, Perforated Sheet, B.Q,. Profile |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank(Circle), Ring(Flange) |
Finish | Hot Rolled Plate(HR), Cold Rolled Sheet(CR), 2B, 2D, BA NO(8),SATIN(Met with Plastic Coated) |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Grade | Stainless Steel Plate Nitronic 60(UNS S21800) |
2. Nitronic 60 Plates Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS |
Nitronic 60 | – | S21800 |
3. 60 Nitronic Plates Chemical Composition
Grade | C | N | Ni | Cr | Mn | S | Si |
MIN | 0.10 | 0.08 | 8.0 | 16.0 | 7.0 | 0.030 | 3.5 |
MAX | – | 0.18 | 9.0 | 18.0 | 9.0 | – | 4.5 |
4.ASTM A240 Nitronic 60 Plates Mechanical properties
Nitronic 60 | Condition | Ultimate Tensile Strength (ksi) | Yield Strength (0.2%) ksi | Elongation in 4D (%) | Reduction of Area % | Hardness HB |
Solution Treated (AMS 5848) <0.5″ | 105 | 55 | 35 | 55 | 170-255 | |
Solution Treated (AMS 5848)>0.5″ | 95 | 50 | 35 | 55 | 170-255 |

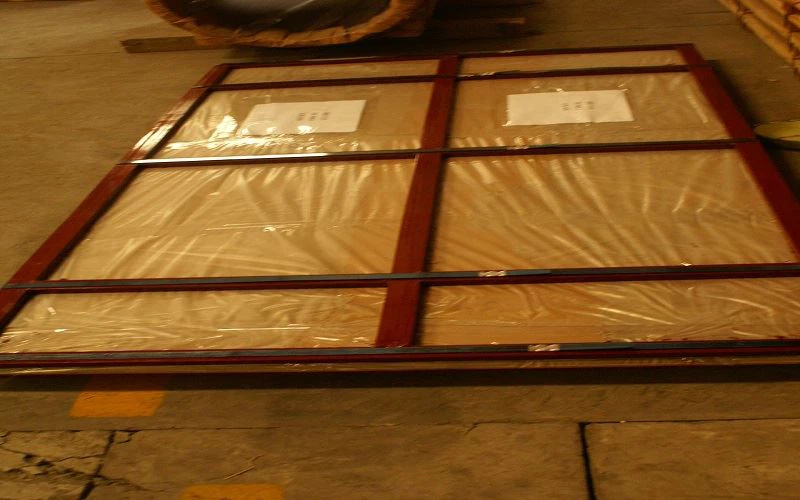

4. Nitronic 60 Steel Plate Package
