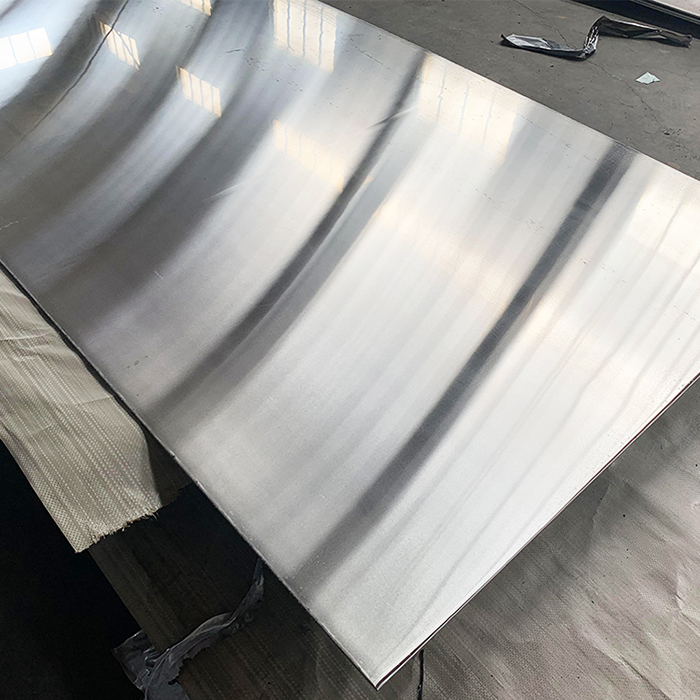

Monel 400 Plates, Nickel Alloy 400 Sheets, UNS N04400 Plate, ASTM B127 UNS N04400 Strip, Alloy 400 Coil, Monel Alloy 400 Plate, Monel Alloy 400 Foil

Alloy 400 is a solid solution alloy that can only be hardened by cold working. N04400 Plate exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. Nickel Alloy 400 Sheet is particularly resistant to hydrochloric and hydrofluoric acids when ASTM B127 UNS N04400 Strips are de-aerated. As would be expected from its high copper content, Alloy 400 Coil is rapidly attacked by nitric acid and ammonia systems.

N04400 Plate has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, Monel 400 Sheet is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.

Chemical Composition of Nickel Alloy 400

The chemical composition of Monel Alloy 400 are shown as below:

Physical Properties of Nickel Alloy 400

Below Table shows the physical properties of Nickel Alloy 400 (UNS N04400):

Mechanical Properties of Monel 400

Mechanical Properties of the Monel 400 Alloy are outlined below:
